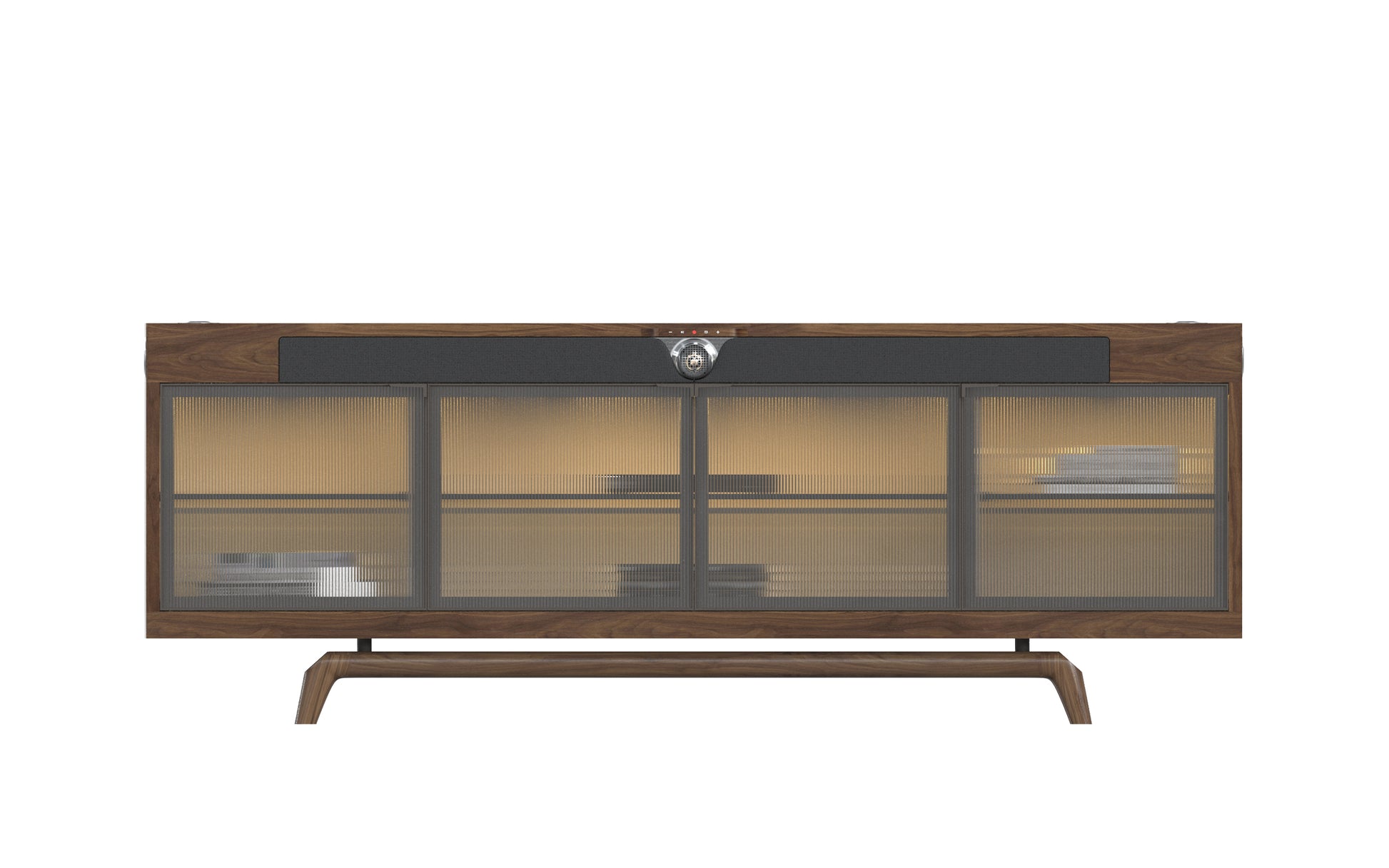

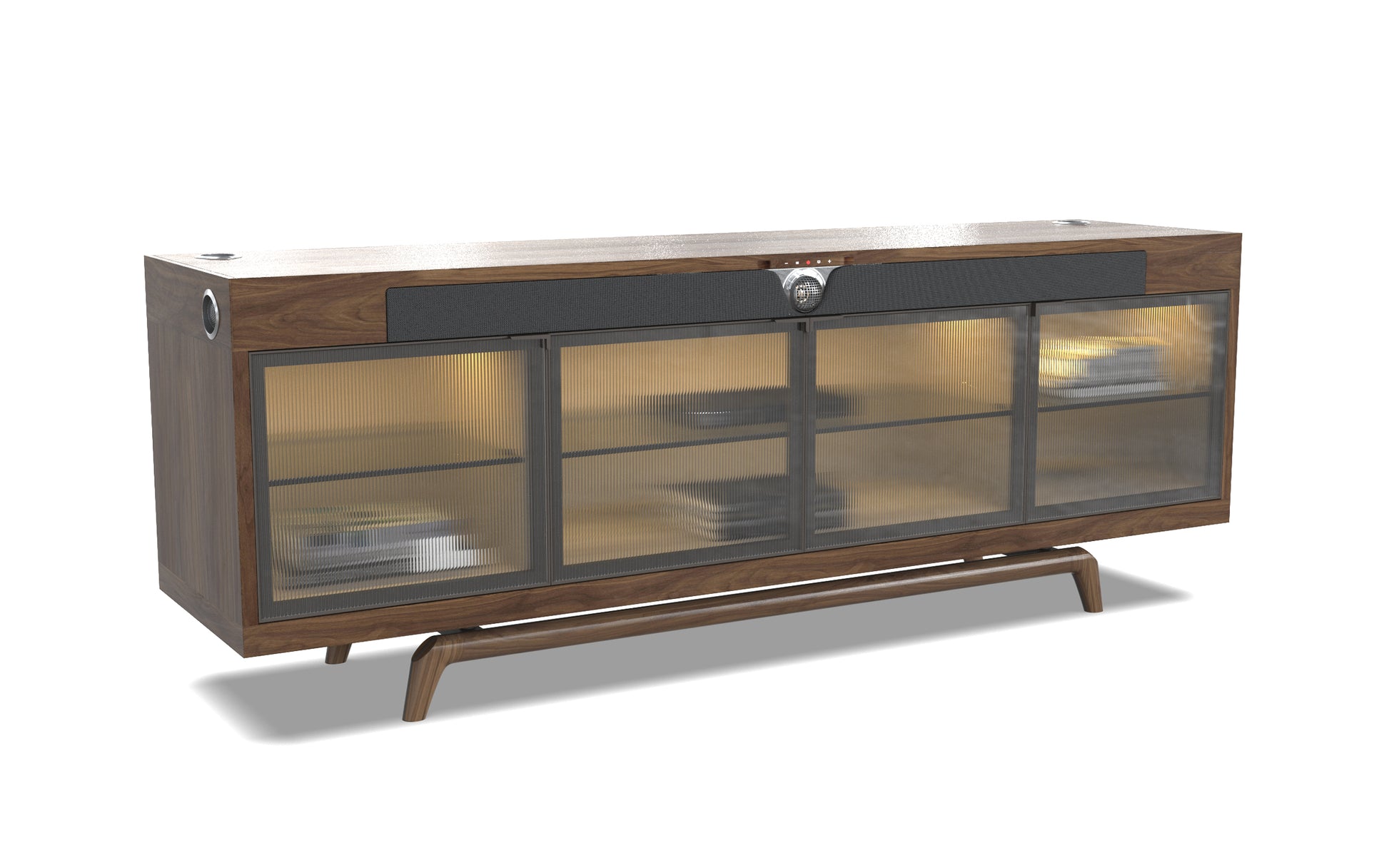

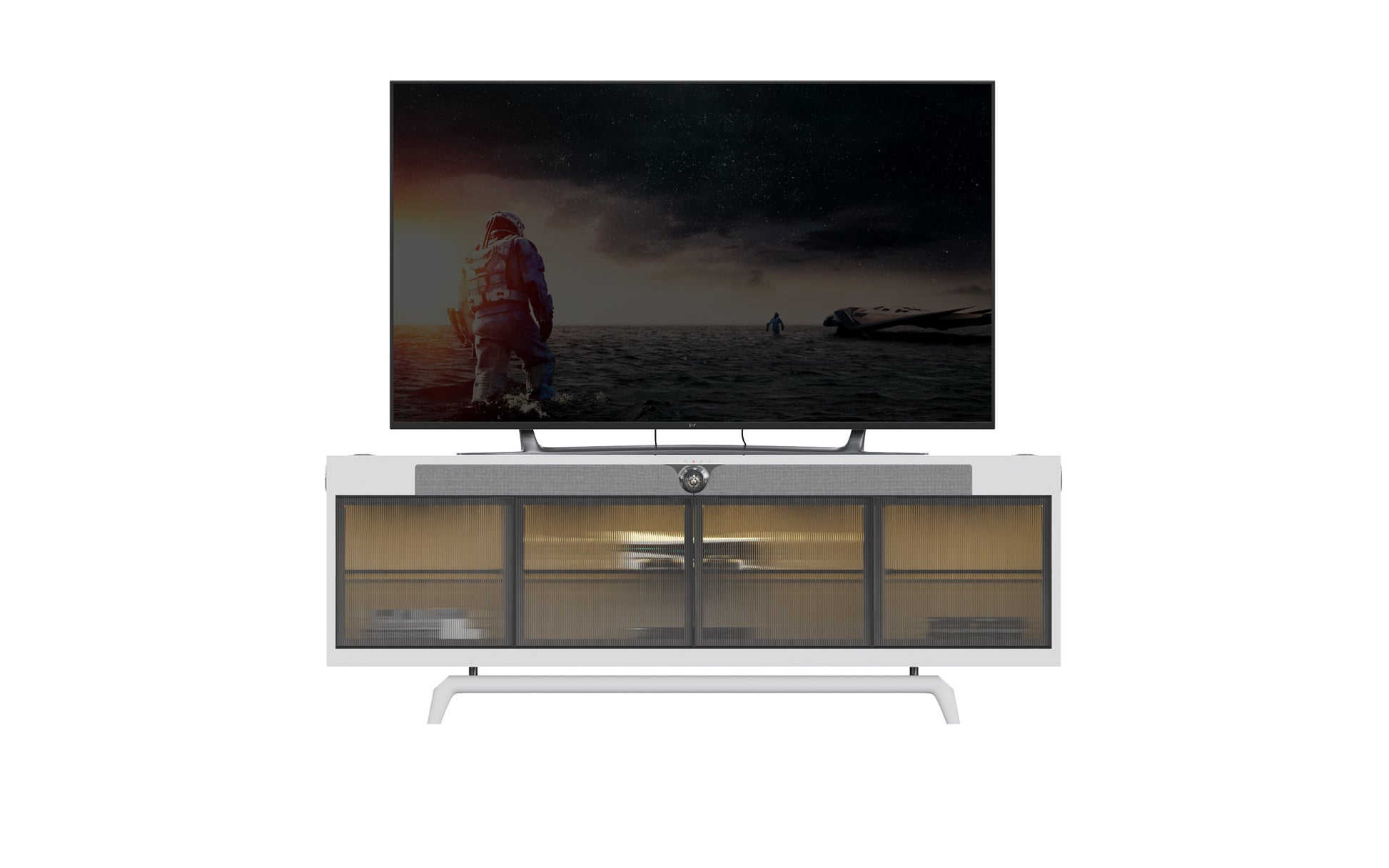

EFConsole Ouverture

Designer:
EF Studio

Model Number:
EF_CA_C1

Weight:
98 KGS

Dimensions:
2032 W x 755 H x 505 D mm

Main Body:
Plywood with solid wood veneer

Base:
Solid wood with inlaid metal

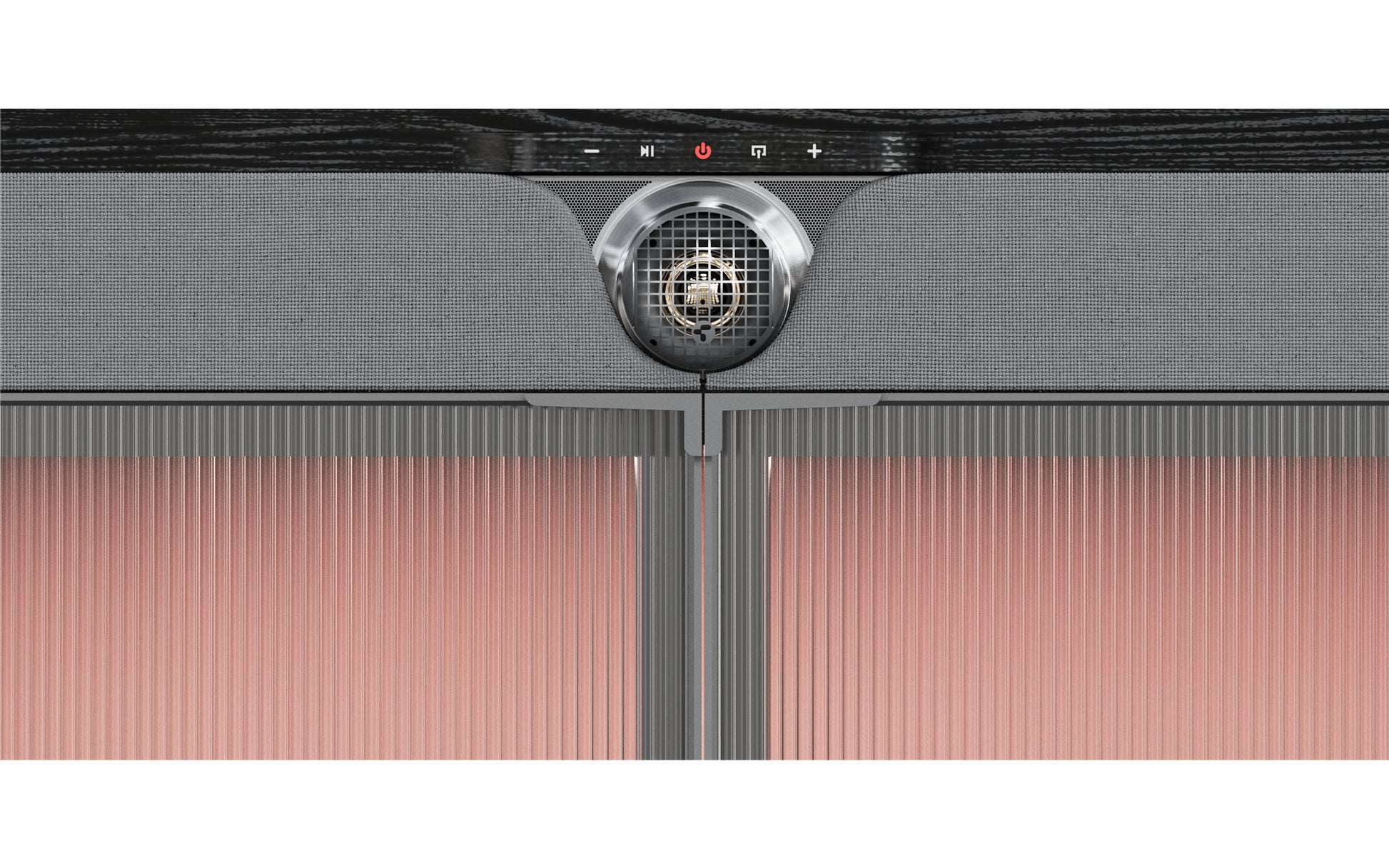

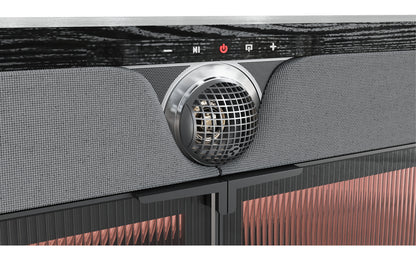

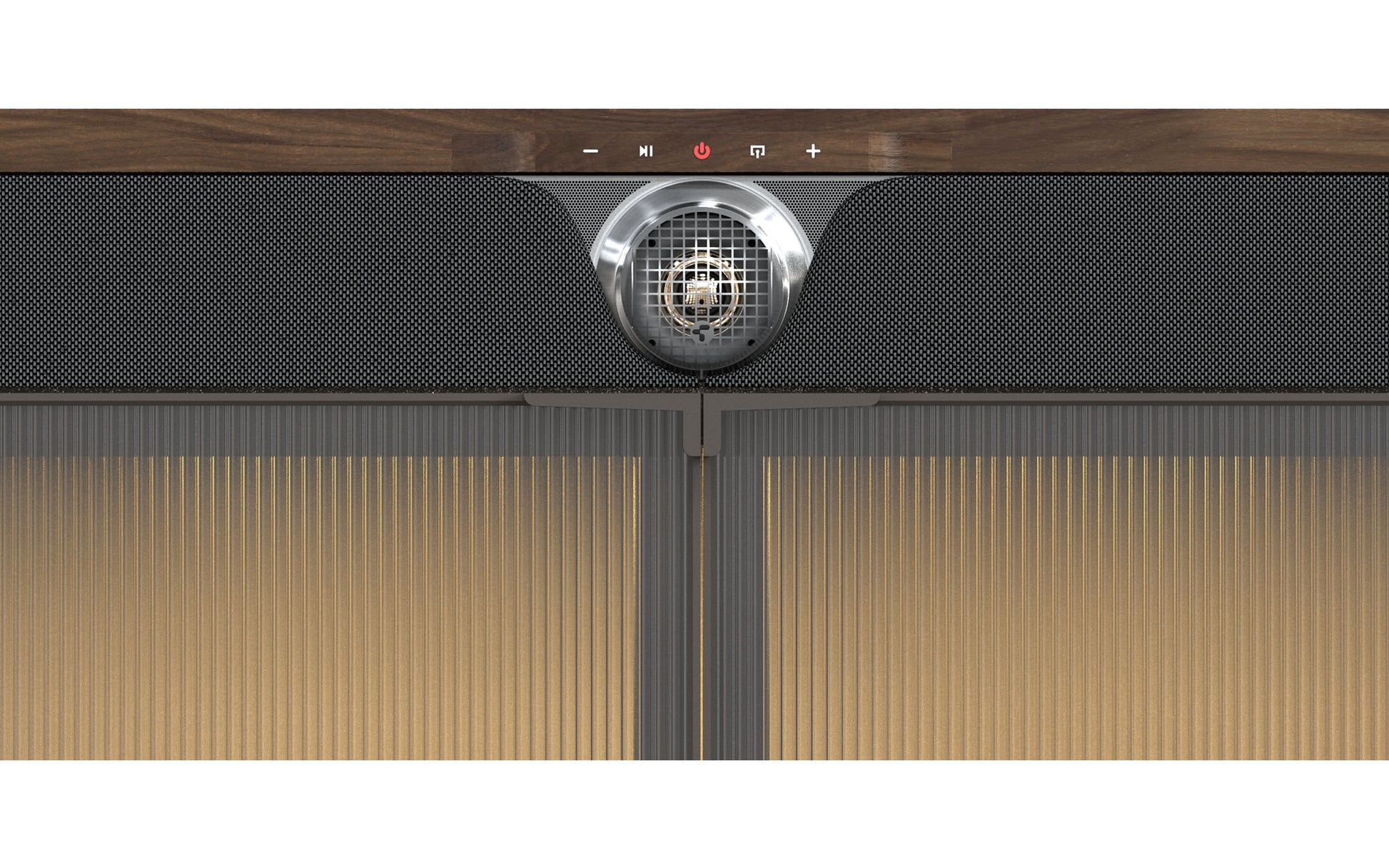

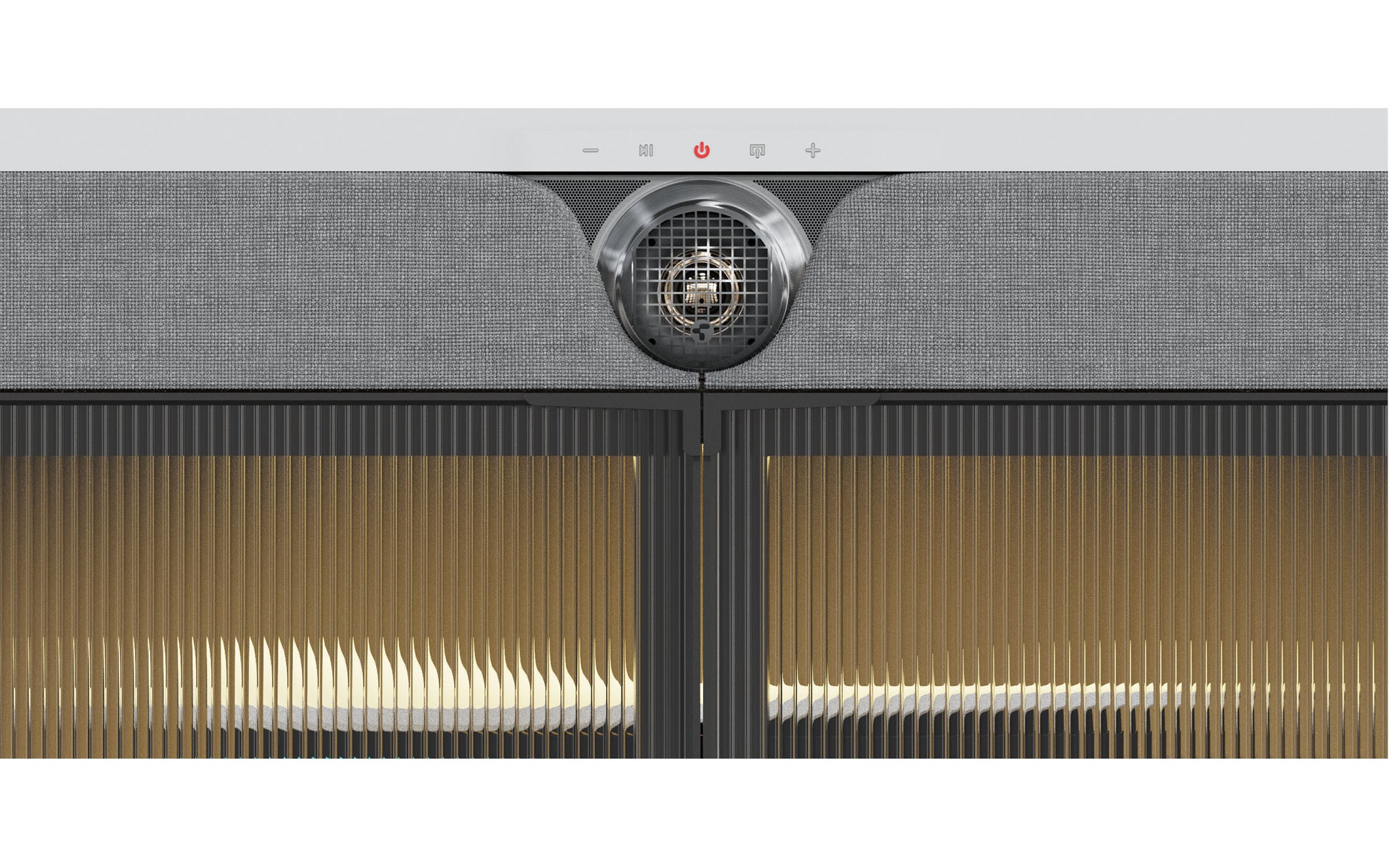

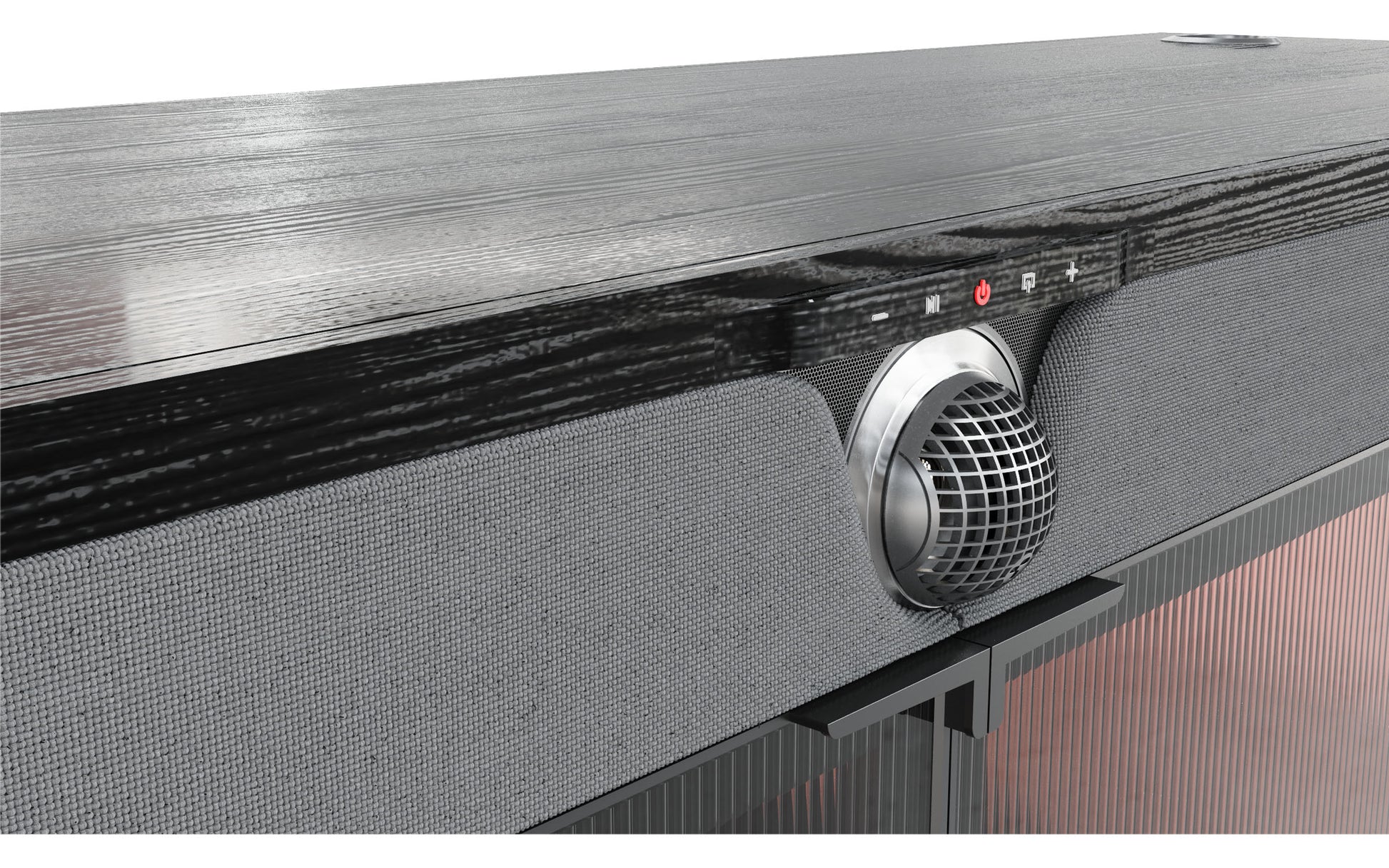

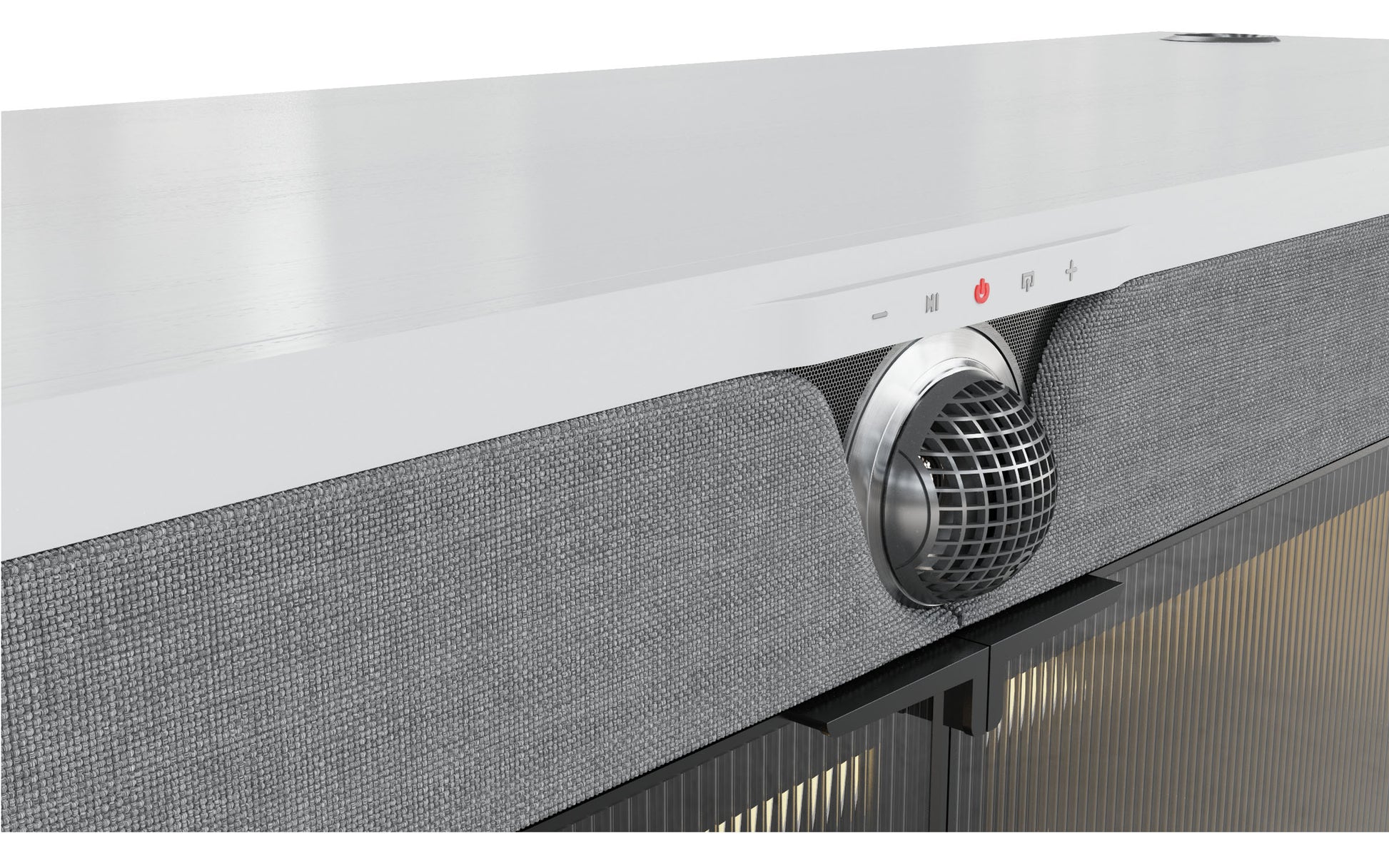

Soundbar:
Aluminium + Iron + PC + Fabric

Button:
Silicon

Recommended Room Size:
15 - 100 m² / 150 - 1000 ft²

Speaker Drivers:
2 x 6.5" subwoofer drivers
6 x 2" mid-range drivers
4 x 2.5" full-range drivers
3 x 1" tweeter drivers

Amplifier:
2 x 80 watts for subwoofer channel
4 x 25 watts for front surround channels
3 x 30 watts for front channels

Frequency Range:
40 - 20000 Hz

Sound Direction:
Music mode 180°
TV mode Dolby Atmos

S.P.L. @1m:
110 dB

Bass Capability:
94 dB

Sound Features:
Built-in Dolby Atmos decoder
Support up to 7.1.4 - 12 channels

Sound Mode:
Standard, Music, Movie, Night, Voice

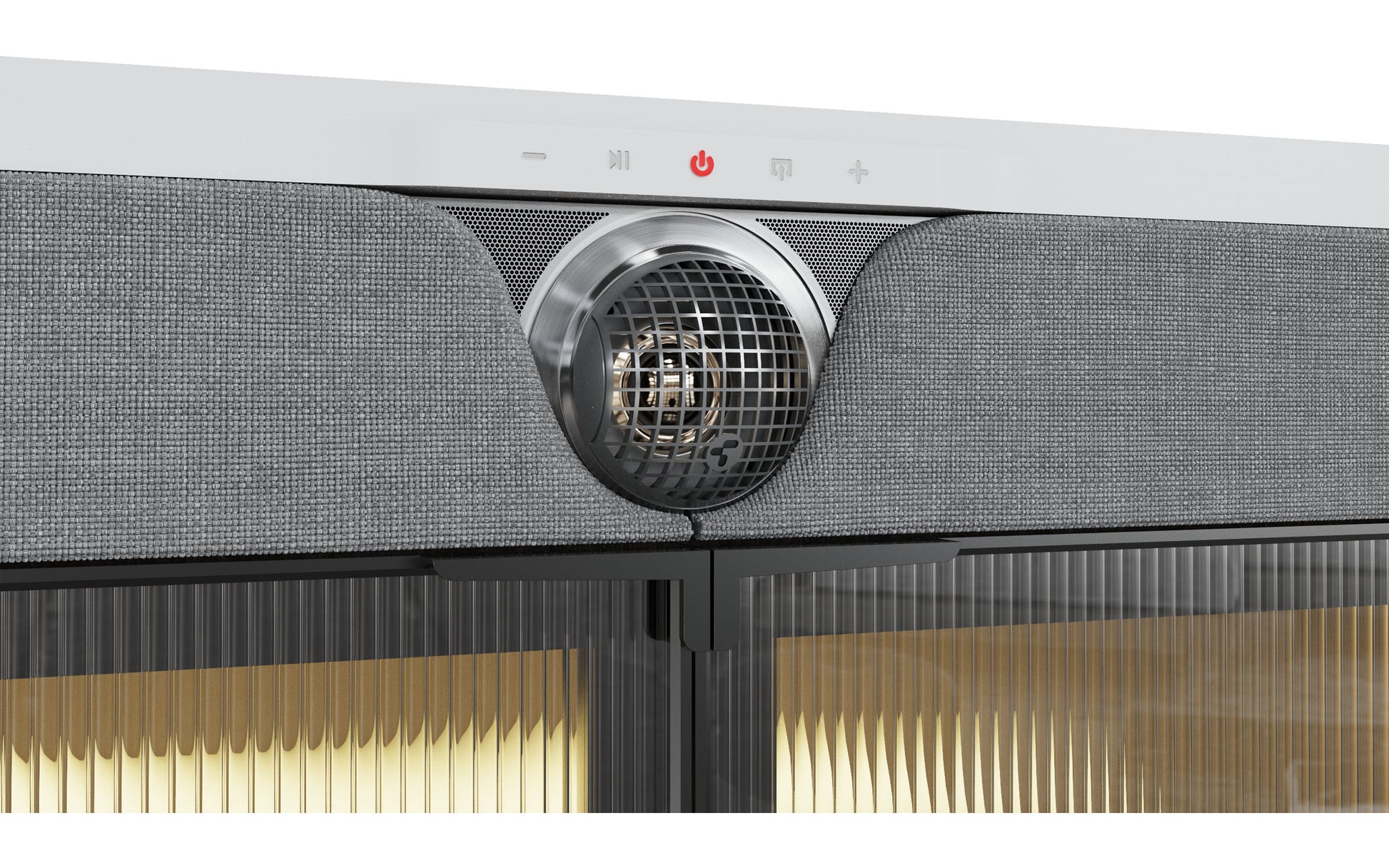

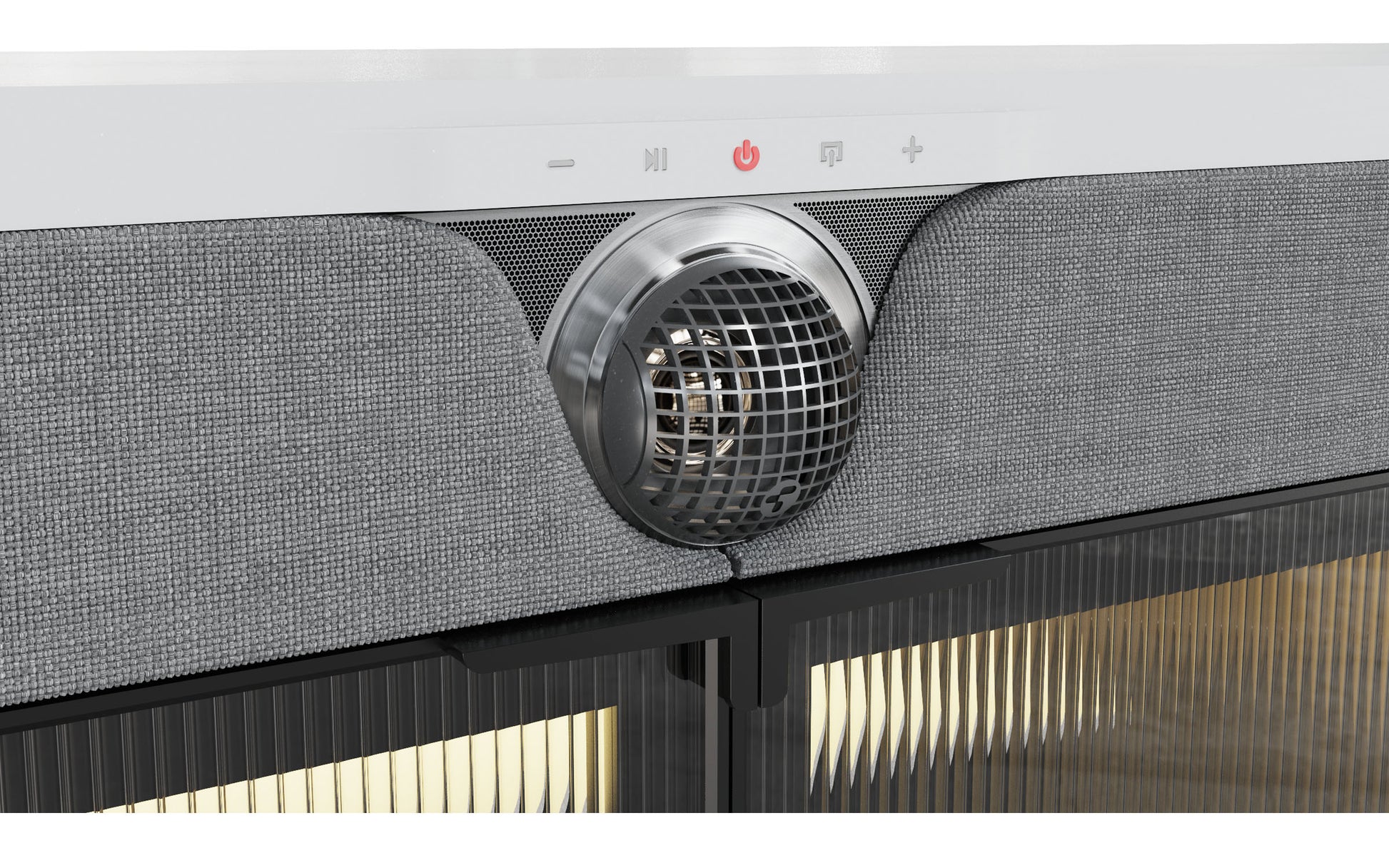

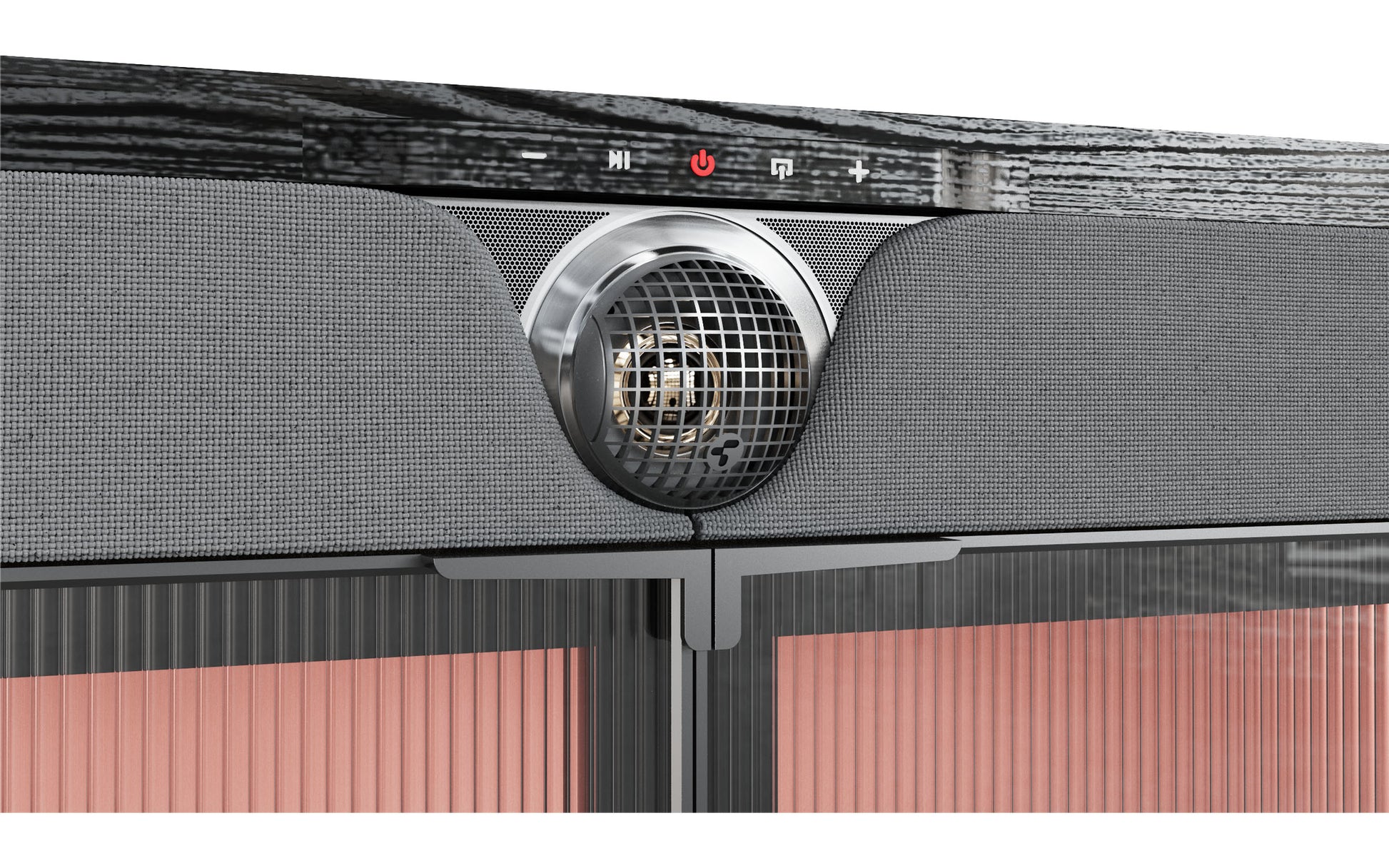

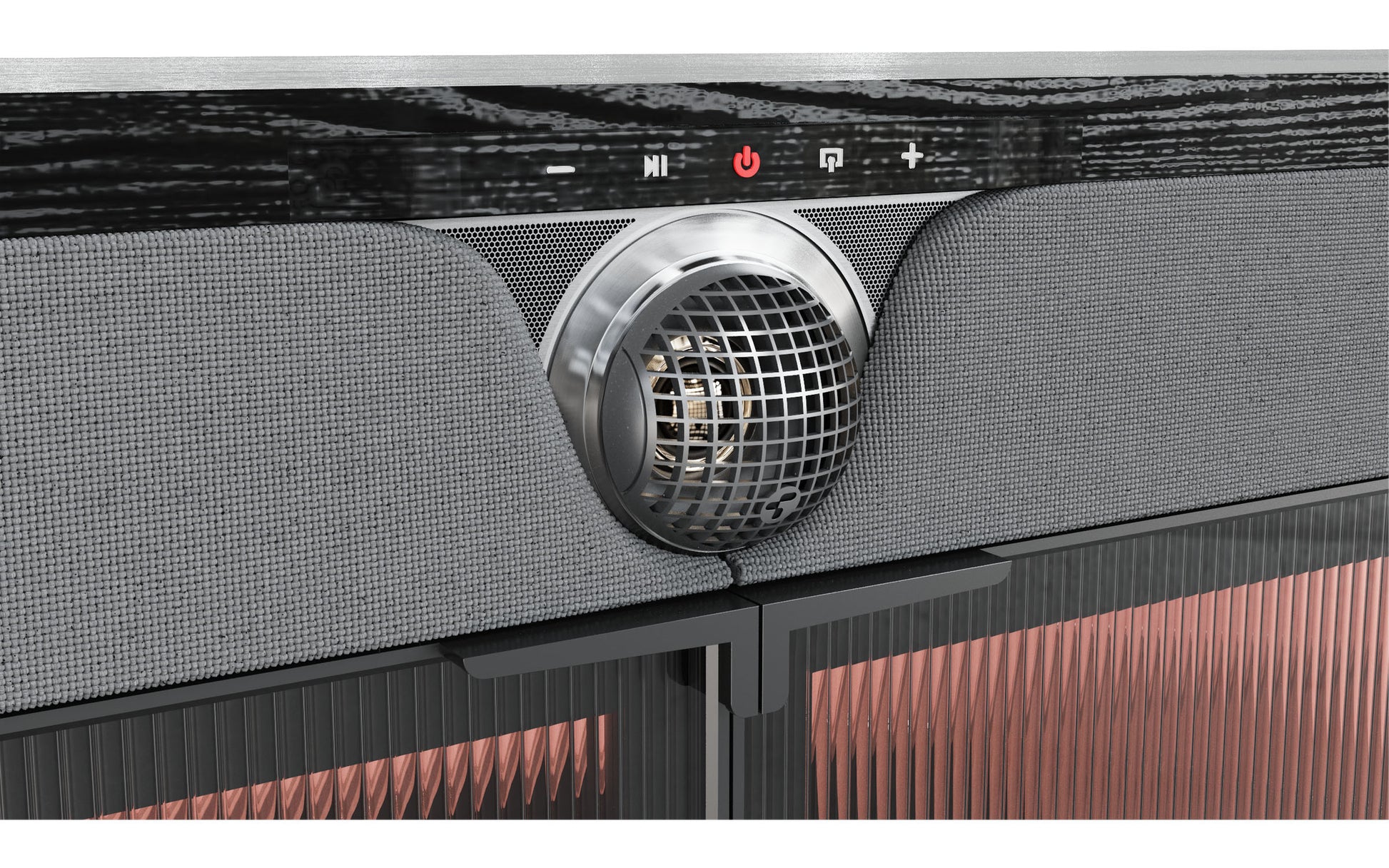

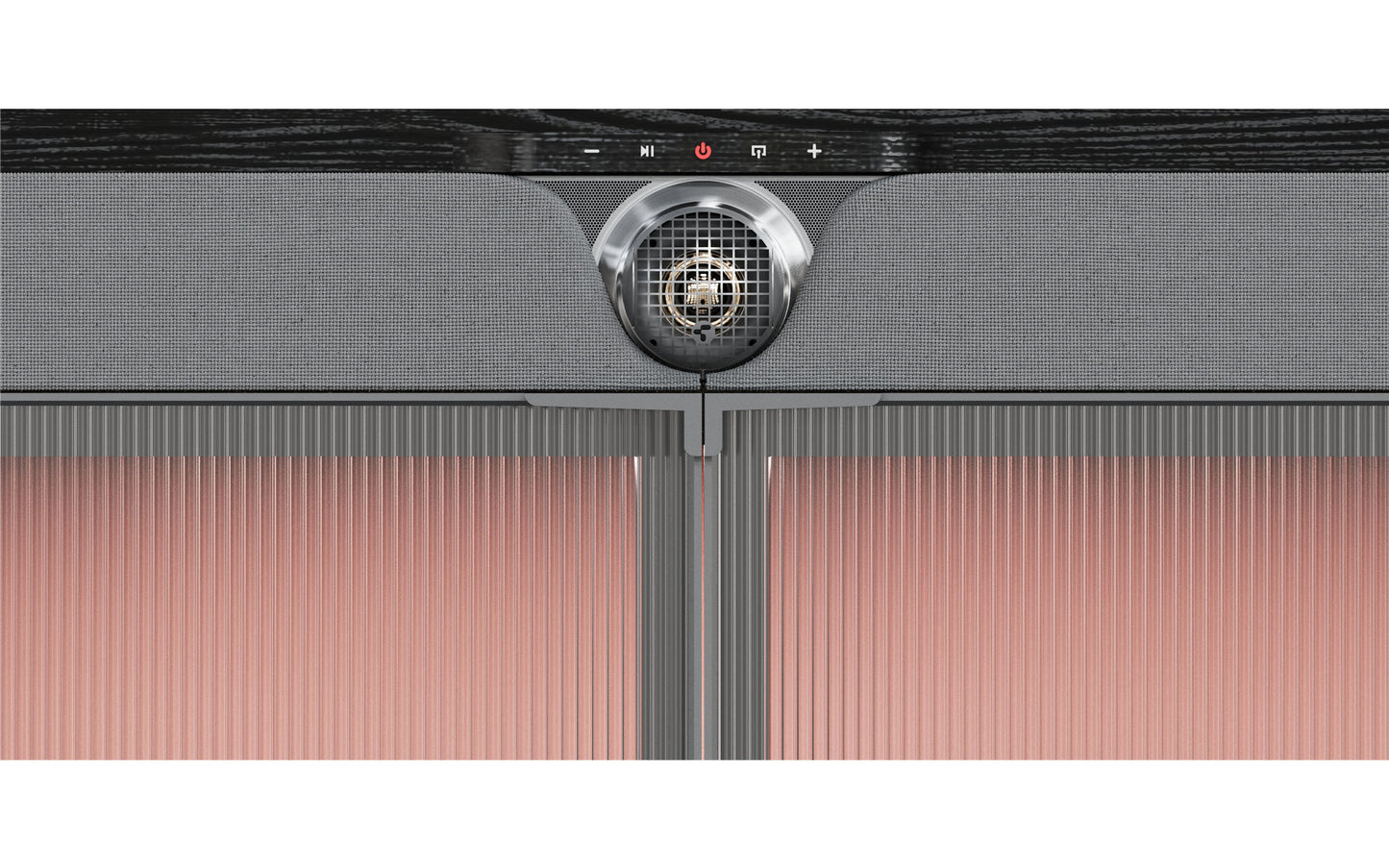

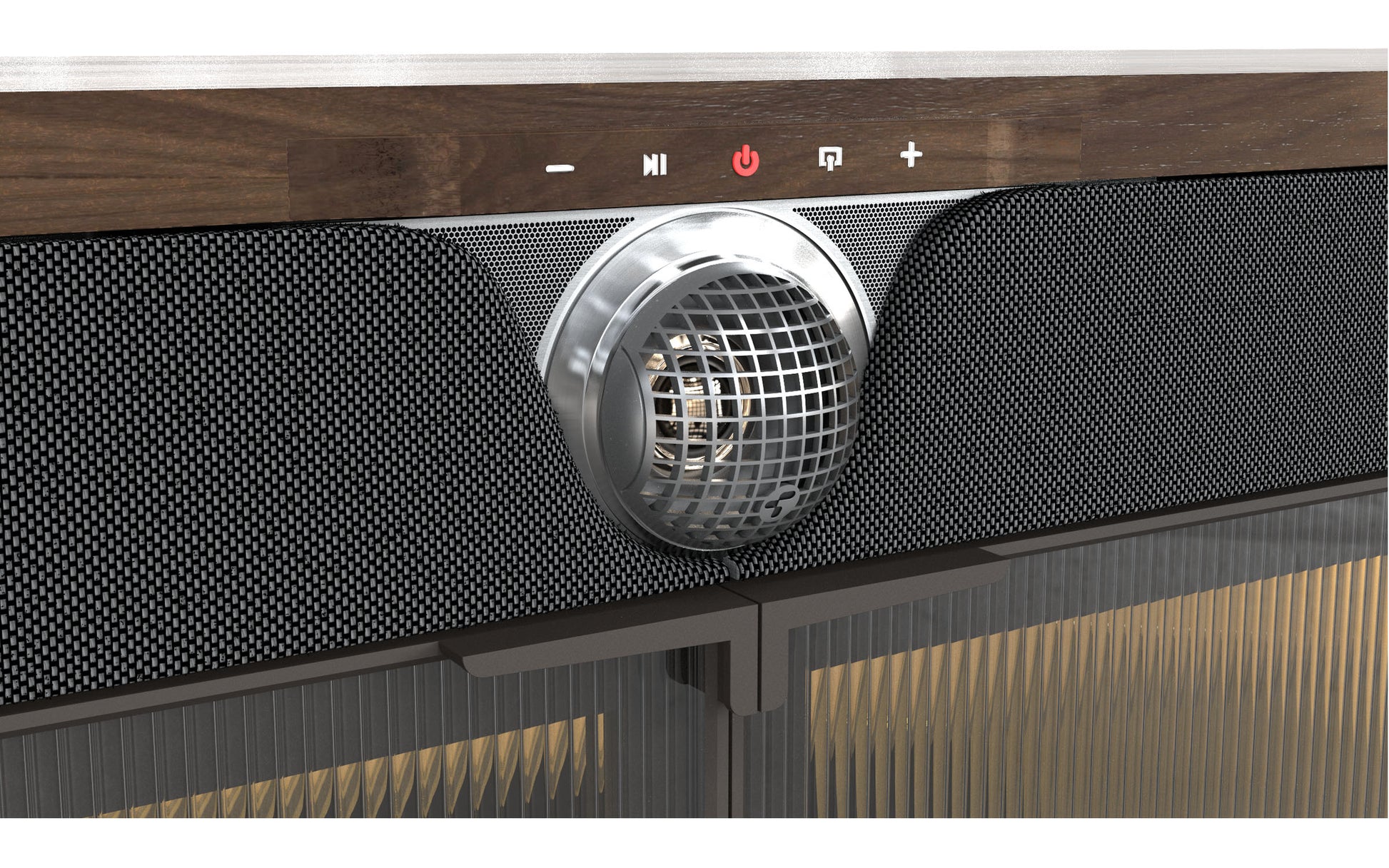

Intuitive:
Touch panel

Remote:
E+F APP
Hand hold

Voice Assistant:
EFPlay Sumikko
Amazon Alexa

Network:
Wi-Fi/WLAN 802.11 a/b/g/n/ac (2.4GHz / 5GHz)
1 x Ethernet CAT6

Wireless Link:
Wi-Fi
Bluetooth 5.2
WiSA (24 bit / 44.1 , 48 , 96 kHz)(Transmitter)

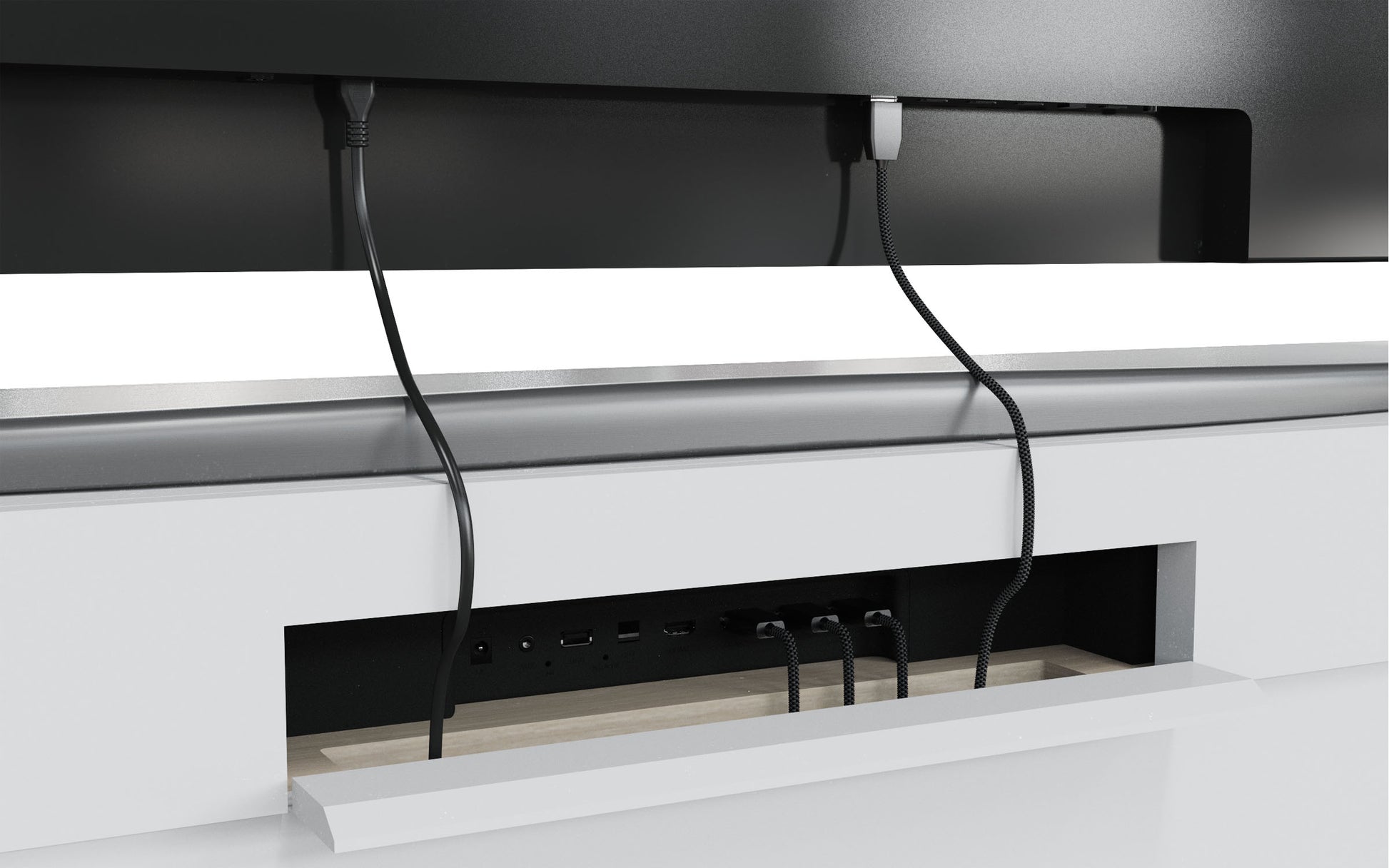

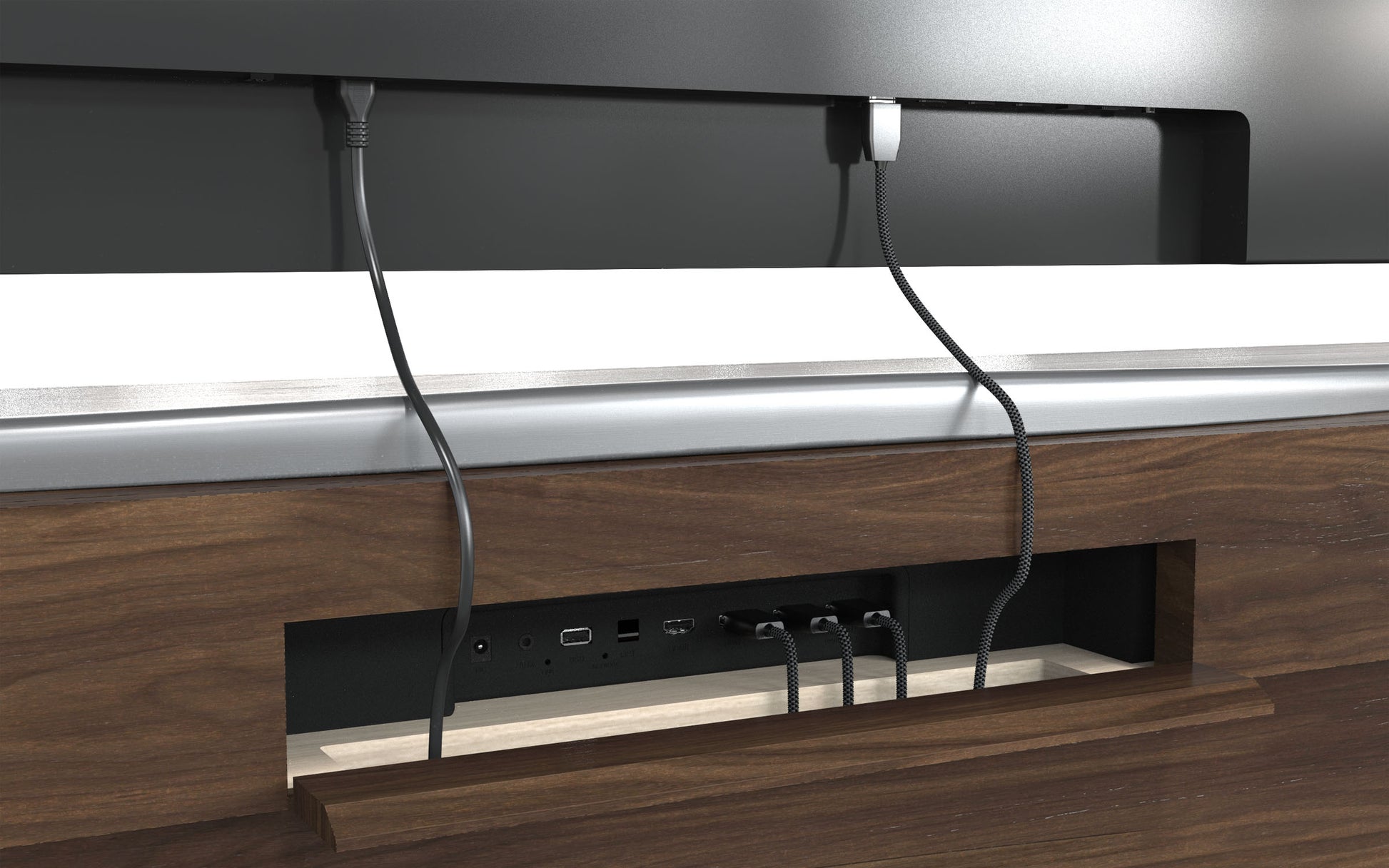

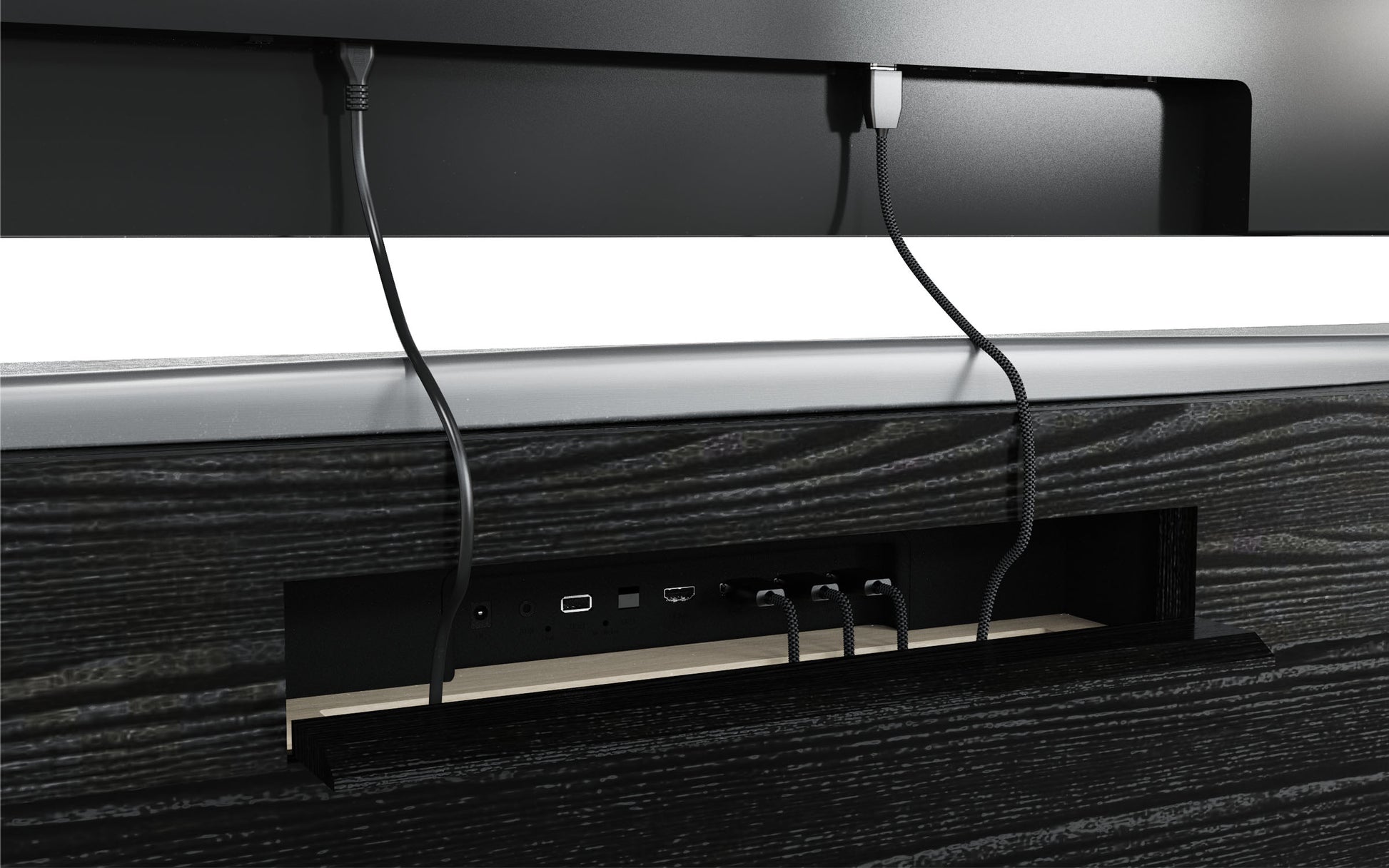

Input:
2 x HDMI 2.1 ports, with support of CEC input
1 x HDMI eARC port, with support of 4K 120FPS / 8K 60FPS / 40Gbit
1 x Optical port (S/PDIF)
1 x Coaxial port (S/PDIF)

Streaming Services:
EFMusic
EFMovie
Spotify Connect
Alexa Music
Airplay 2
QPlay
Apple TV plus
Hulu
Disney plus
WeTV
Youku
iQIYI etc

Multiroom:
EFPLAY Multiroom
AirPlay 2

Multichannel:
Dolby Atmos
Dolby TrueHD

Power:
AC 125 - 250 V, 50/60 Hz

Power Consumption:
AMP 350 W
Stand by < 2 W

Power Outlet:
Four outlets total 1800 W
With overload protection
